HITI Servo (Control Parameters)

Modified on Wed, 04 Jan 2023 at 02:55 PM

A HITI Servo is a variable which lets you control the position and speed of a servo with sub-degrees resolution (the position resolution of a servo is around 0.1°). It internally creates and manages a Servo variable from the standard Servo library.

This example introduces you with the main parameters involved in the control of Finite Motions, that is motions which have a defined target position. All these parameters are controlled and monitored from the DATA Control Panels. The servo is on pin 8.

Sketch

Upload this sketch : 5_MotionControl \ 1_ServoParameters

We start our code by including the HC_Servo.h library and by creating a HITI Servo variable (HC_Servo servo).

We also assign several HITI Data to different control parameters to control and monitor the Servo from HITIPanel :

Position control (setpoint type, setpoint, target, current)
Speed control (setpoint type, setpoint, max, target, current)
Motion Time (target)
“START” and “STOP” buttons
Servo state (can be Ready or Moving)
Virtualtravel limits

#include <HITIComm.h>
#include <HC_Servo.h>

// pins assignment
const int pin_Servo = 8;

// Analog Data assignment
const int ad_PosSetpoint       = 0; // position (setpoint, target, current)
const int ad_PosTarget         = 1;
const int ad_PosCurrent        = 2;
const int ad_SpeSetpoint       = 3; // speed (setpoint, max, target, current)
const int ad_SpeMax            = 4;
const int ad_SpeTarget         = 5;
const int ad_SpeCurrent        = 6;
const int ad_MotionTime        = 7; // motion time (target)

// Digital Data assignment
const int dd_PosType           = 0; // position (setpoint type)
const int dd_SpeType           = 1; // speed (setpoint type)
const int dd_Start             = 2; // virtual switches
const int dd_Stop              = 3;
const int dd_ServoIsReady      = 4; // servo state
const int dd_ServoIsMoving     = 5;
const int dd_NegLimitIsReached = 6; // travel limits
const int dd_PosLimitIsReached = 7;

// position control
bool  posType     = LOW; // LOW: absolute    /  HIGH: relative
float posSetpoint = 30;  // 30° absolute

// speed control
bool  speType     = LOW; // LOW: speed(°/s)  /  HIGH: motion time(s)
float speSetpoint = 10;  // 10°/s
float speMax      = 100; // 100 (°/s)

// HITI Servo
HC_Servo servo;

During the setup(), we use init() to initialize the Servo and to get the following configuration:

We give the Servo an ID number (ID 0)
We attach the servo to pin 8
We invert the direction of rotation (useful if your servo is turning the wrong way)
We add a permanentposition offset of -4.3° to adjust our software reference position. This position offset depends on the direction of rotation set above.
We ask the servo to move to an initial position of 70°. The servo does this move at max speed (no speed control)

The next thing we do is to limit the reachable position range by setting 2 virtual travel limits: a negative limit at 17° and a positive limit at 165°. It results that the servo will only be able to move between 17° and 165° and will stop when reaching this travel limits.

We end the setup() by displaying the initial values of our control parameters in HITIPanel.

void setup()
{
    // initialize library
    HC_begin();

    // initialize HITI Servo
    servo.init(
            0,           // ID = 0
            pin_Servo,   // attached to pin 8
            true,        // true => invert direction
            -4.3,        // position offset = -4.3°
            70.0);       // initial position = 70°

    // set travel limits -/+ (°)
    servo.travelLimits(17.0, 165.0);

    // display initial values of control parameters in HITIPanel
    HC_digitalDataWrite(dd_PosType,    posType);     // position
    HC_analogDataWrite(ad_PosSetpoint, posSetpoint);
    HC_digitalDataWrite(dd_SpeType,    speType);     // speed
    HC_analogDataWrite(ad_SpeSetpoint, speSetpoint);
    HC_analogDataWrite(ad_SpeMax,      speMax);
}

Inside the loop(), we start by retrieving the values of the control parameters set through HITIPanel and we set the position and speed setpoints accordingly.

The meaning of the setpoints values depend on the type of setpoints selected in HITIPanel (variables posType and speType). The position setpoint can be absolute or relative, and the speed setpoint can be a speed (°/s) or a motion time (s).

Next, we set the max speed. This is a safety parameter which limits the speed and can increase the motion time accordingly.

void loop()
{
    // communicate with HITIPanel
    HC_communicate();


    // set new control parameters ---------------------------------------------

    // read from HITIPanel
    posType     = HC_digitalDataRead(dd_PosType);
    posSetpoint = HC_analogDataRead(ad_PosSetpoint);
    speType     = HC_digitalDataRead(dd_SpeType);
    speSetpoint = HC_analogDataRead(ad_SpeSetpoint);
    speMax      = HC_analogDataRead(ad_SpeMax);

    // 1) set position and speed setpoints
    if (posType == HIGH)
        servo.relativePosition(posSetpoint);
    else
        servo.absolutePosition(posSetpoint);

    if (speType == HIGH)
        servo.motionTime(speSetpoint);
    else
        servo.speed(speSetpoint);

    // 2) set max speed
    servo.maxSpeed(speMax);

After that, we use moveOnTrigger() to start the motion. The motion is started only if the “START” button is clicked and if the Servo is Ready.

Similarly, we use stopOnTrigger() to stop any ongoing motion. The motion is stopped only if the “STOP” button is clicked and if the Servo is still Moving.

Finally, we display all the data in HITIPanel:

Speed (Target, Current)
Position (Target, Current)
Motion time (Target)
Servo state (Ready or Moving)
Virtual travel limits (has the servo reached one of them?)

    // start/stop motion -----------------------------------------------------

    // move/stop on trigger (START/STOP buttons)
    servo.moveOnTrigger(HC_digitalDataRead(dd_Start));
    servo.stopOnTrigger(HC_digitalDataRead(dd_Stop));

    // immediately deactivate Buttons
    HC_digitalDataWrite(dd_Start, false);
    HC_digitalDataWrite(dd_Stop,  false);


    // display data in HITIPanel ---------------------------------------------

    // control parameters
    HC_analogDataWrite(ad_PosTarget,  servo.getTargetPosition());  // position
    HC_analogDataWrite(ad_PosCurrent, servo.getCurrentPosition());
    HC_analogDataWrite(ad_SpeTarget,  servo.getTargetSpeed());     // speed
    HC_analogDataWrite(ad_SpeCurrent, servo.getCurrentSpeed());
    HC_analogDataWrite(ad_MotionTime, servo.getMotionTime());      // motion time

    // servo state
    HC_digitalDataWrite(dd_ServoIsReady,  servo.isReady());
    HC_digitalDataWrite(dd_ServoIsMoving, servo.isMoving());

    // has the servo reached a travel limit?
    HC_digitalDataWrite(dd_NegLimitIsReached, servo.isNegLimitReached());
    HC_digitalDataWrite(dd_PosLimitIsReached, servo.isPosLimitReached());
}

Control Panels

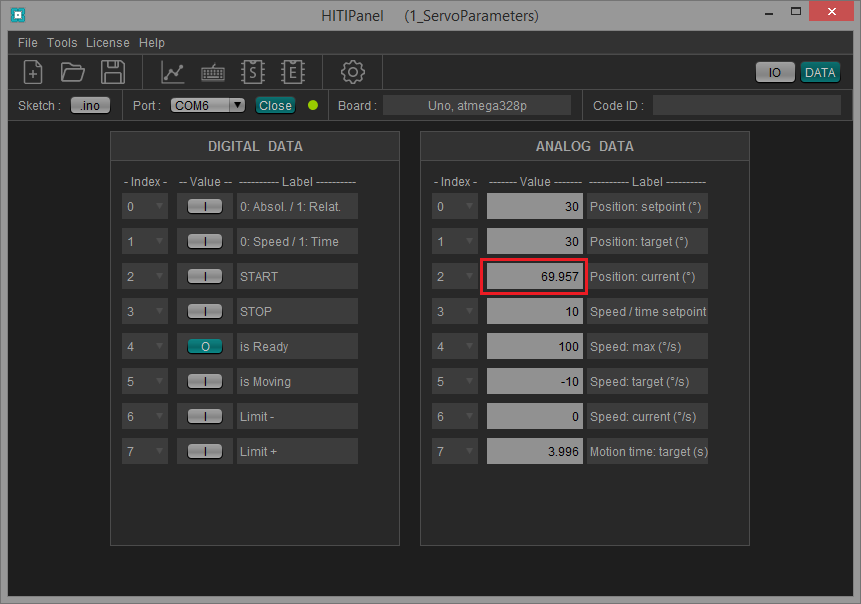

1) Display the DATA Control Panels.

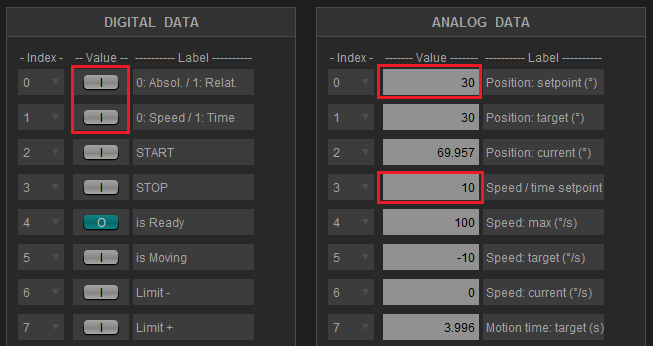

2) As you can see, the servo is at its initial position of 70° (“current position”).

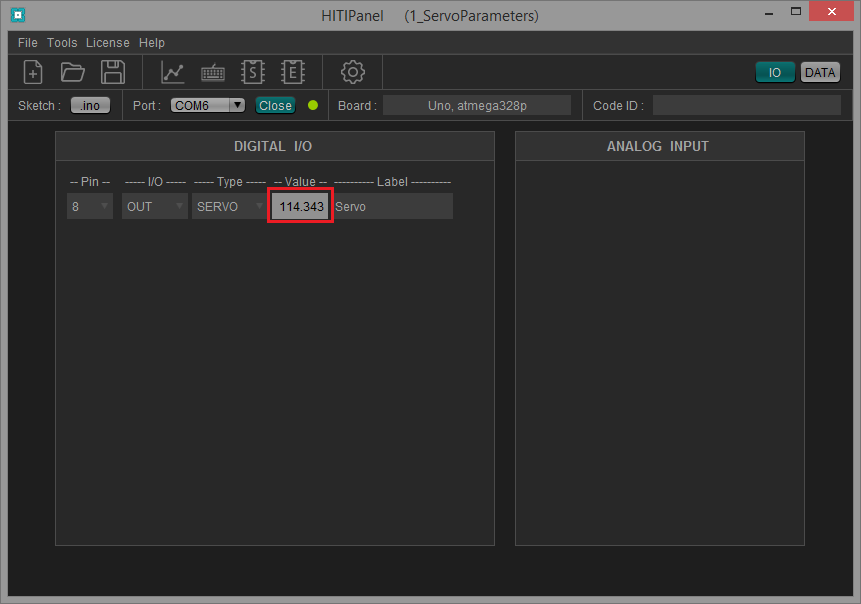

3) Display the I/O Control Panels.

4) The “raw position” is 114.3°. Indeed, the “current position” is obtained after inverting the direction and applying a position offset of -4.3° (180° - (70° - 4.3°) = 114.3°).

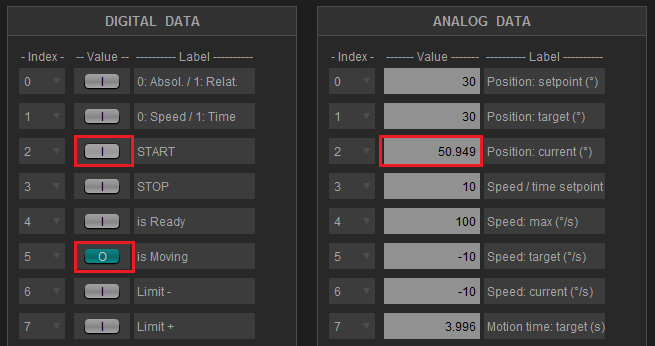

5) Go back to the DATA Control Panels. Your servo is “Ready” to start a move. Click on START to move it to the absolute position 30° at 100°/s. During the motion, the servo is “Moving”. And when the motion finishes, it becomes “Ready” again. An action on STOP during the motion will end the motion prematurely.

6) Now change the position setpoint to “Relative” and the speed setpoint to “Time”. Then enter a relative position setpoint of -5° and a motion time setpoint of 3s.

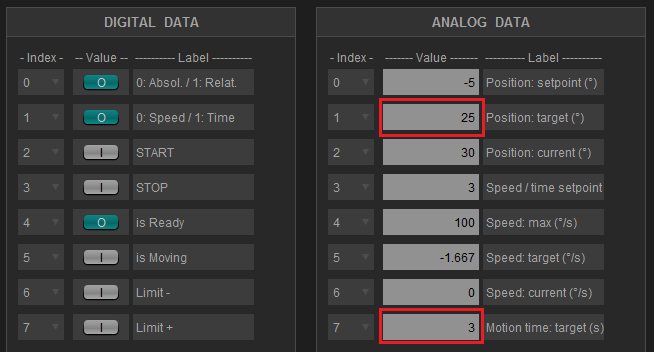

7) As you can see, the (absolute) target position as well as the target motion time are updated according to your new setpoints.

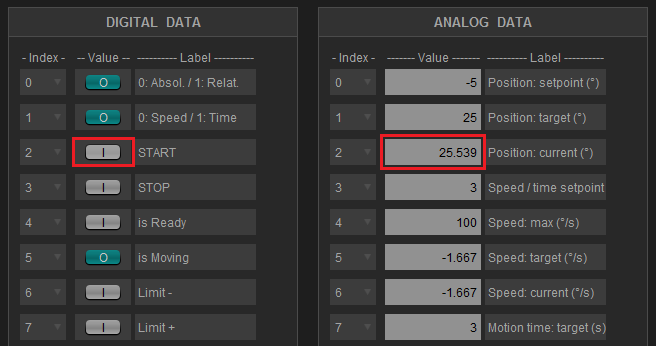

8) Click on START to move your servo 5° in negative direction in 3s.

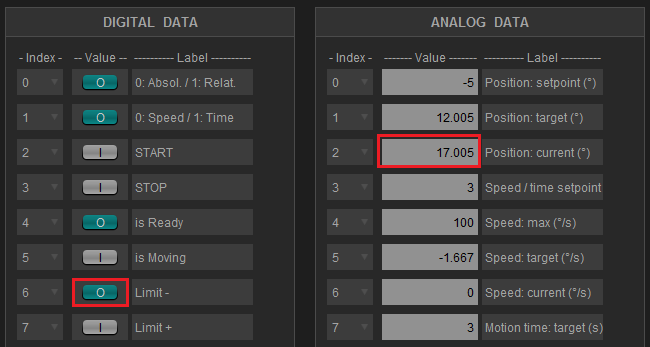

9) Repeat this operation several times. You will notice that your servo cannot go lower than 17°. This is normal since it reached the negative limit set in your program.

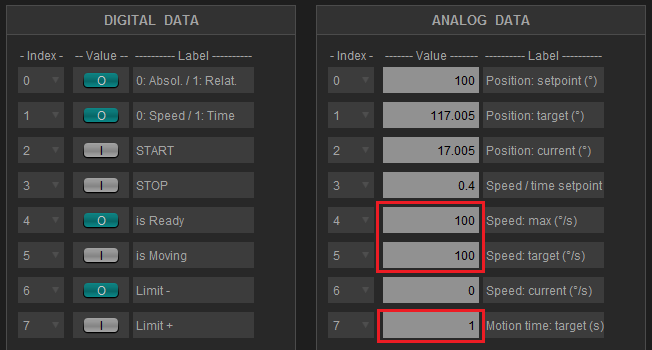

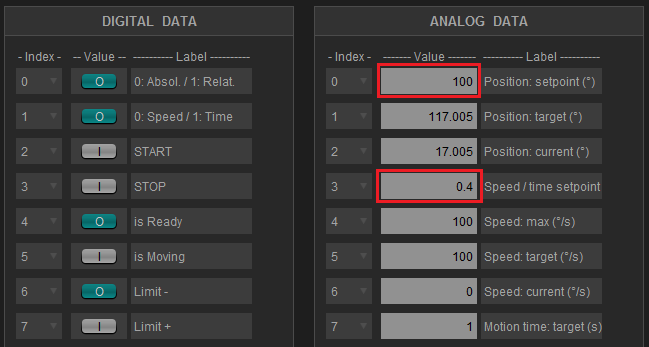

10) Now, enter a relative position setpoint of +100° and a motion time setpoint of 0.4s.

11) You should notice that the target motion time is 1s which is much higher than what you asked for. This is because the target speed has been limited to the max speed 100°/s. Indeed, to perform a motion of 100° at a speed of 100°/s, the motion time is 1s.

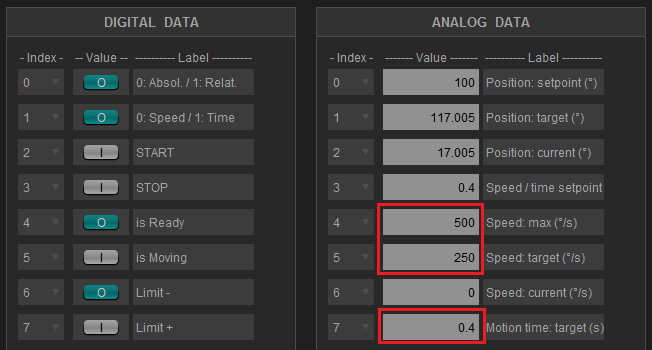

12) Change the max speed to 500°/s. You should now be able to perform your motion in 0.4s at a target speed of 250°/s.

Chart

1) Open the Chart window .

2) Start data acquisition. The servo position is then plotted, and new data are added every 10ms.

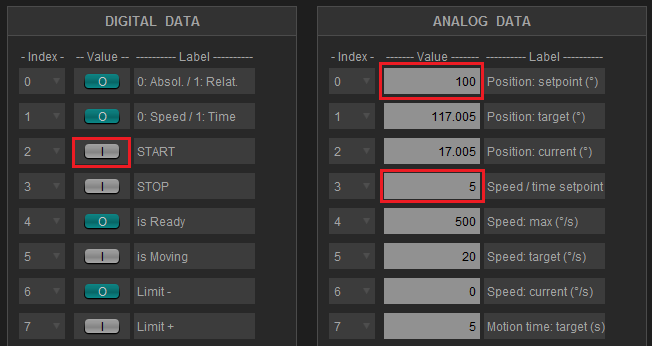

3) In the DATA Control Panels, change the relative position setpoint to +100° and the motion time setpoint to 5s. Then, click on the START to start the motion.

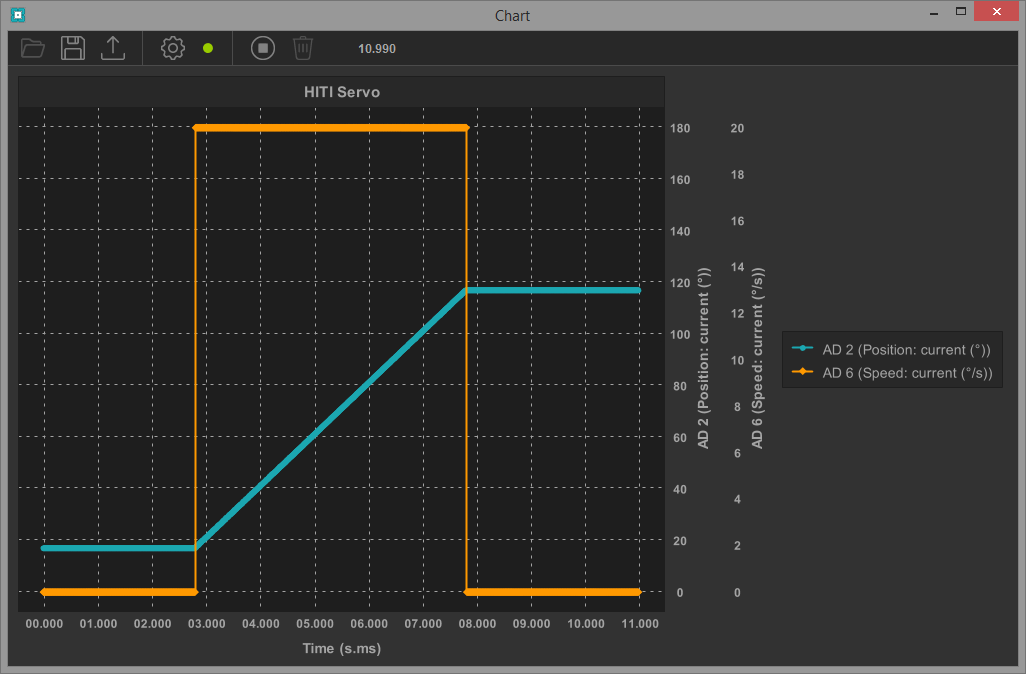

4) When the motion is finished, stop data acquisition. You then get a position profile that is characteristic of Linear Position Profiles:

instant acceleration/deceleration
constant speed during the motion (20°/s).
