Chart

Modified on Wed, 04 Jan 2023 at 11:31 PM

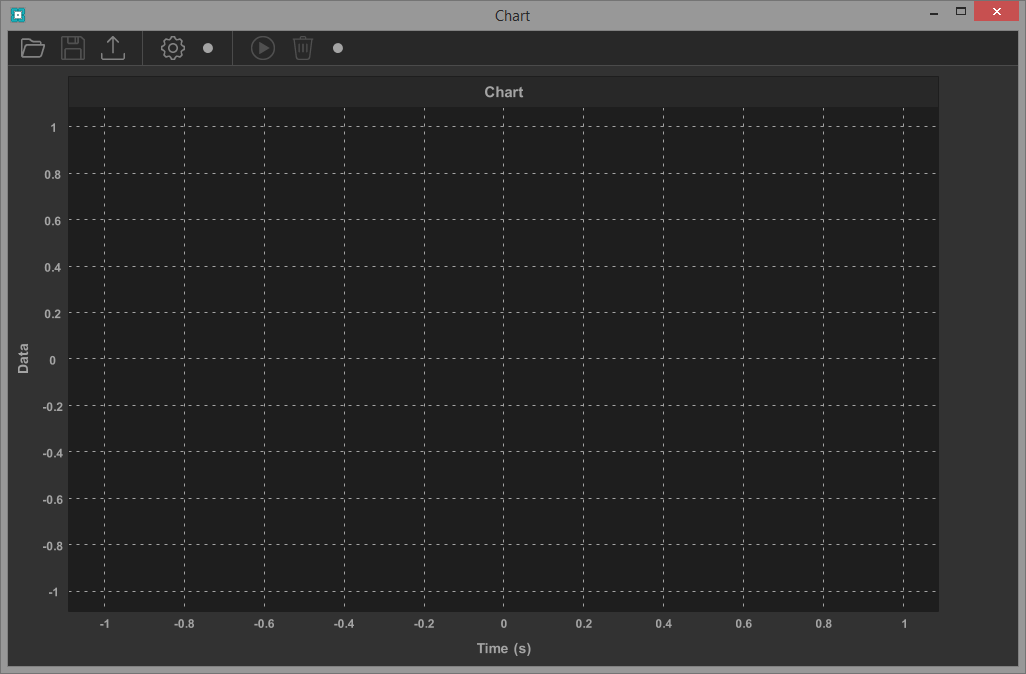

HITIPanel features a Chart to plot up to 12 data at the same time on a timeline axis (date and time). Data can be I/O, HITI Data, or System data (loop cycle time, free RAM).


Acquired data can be exported to Text or Excel files. It is also possible to import data from Text files created by data loggers.

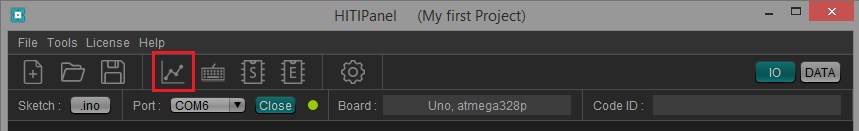

To open the Chart window : CTRL+T or Tools\Chart.
