Customizing the GUI

Displaying what you need

For each control panel, it is possible to choose whether it must show all the Command Panels, or just a selection. This is done by using the drop-down list at the bottom left of a control panel.

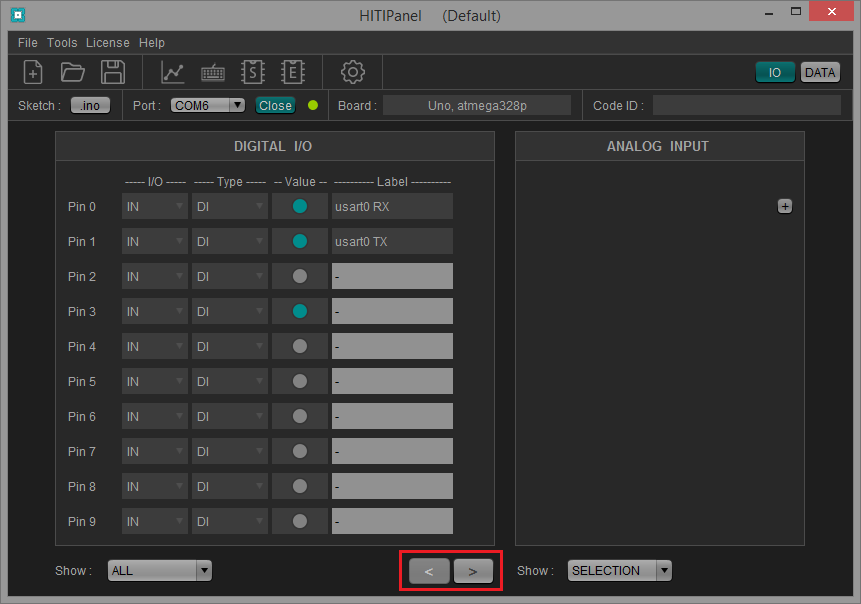

Displaying ALL

This option displays all the Command Panels, with a max of 10 per page. Use the Navigation Arrows to display the next page.

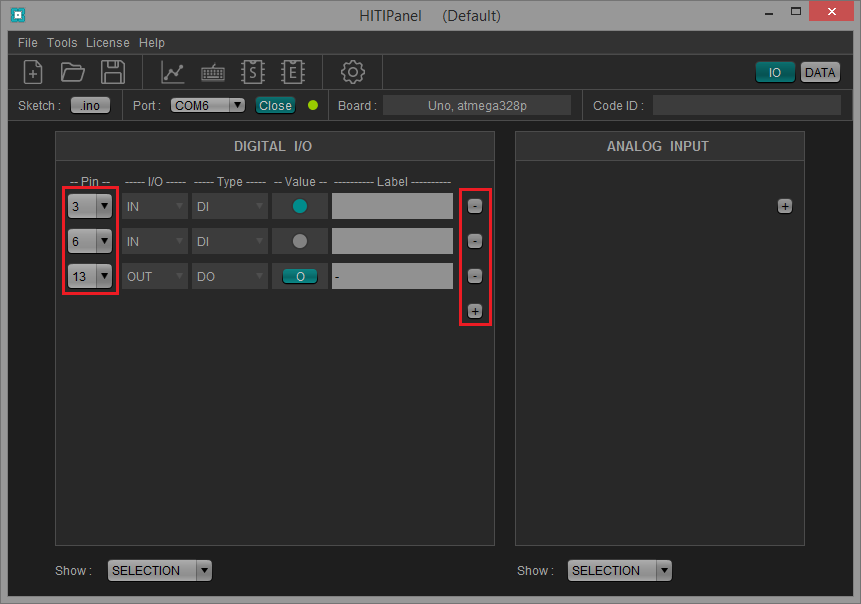

Displaying a SELECTION

This option displays only a selection of Command Panels, with a max of 10. Use buttons +/- to add/remove a Command Panel. Use the drop-down list on the left of a Command Panel to assign it a pin (or HITI data).

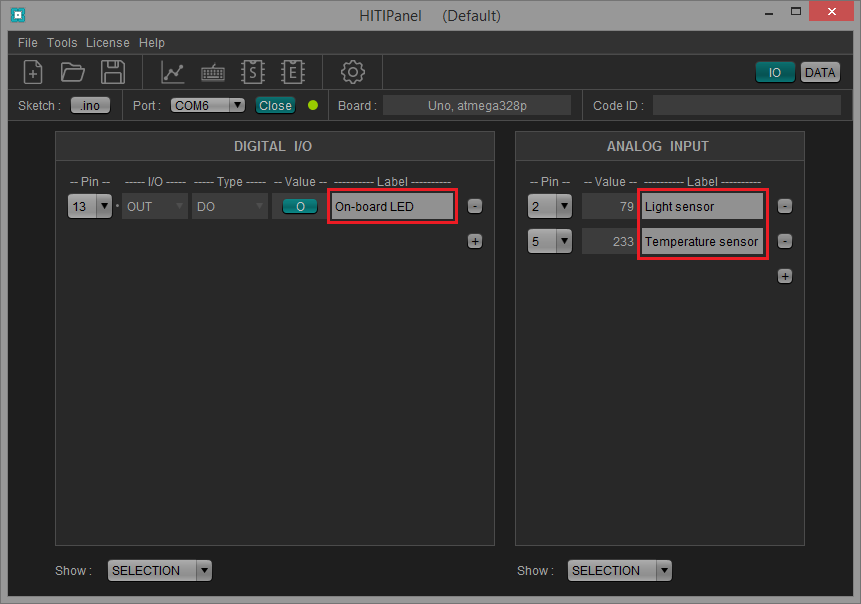

Naming your pins and data

You can give custom names to your pins (or HITI data) by editing their Labels. These names will be used by the Project to identify your pins (or HITI data), for instance when plotting data in the Chart.

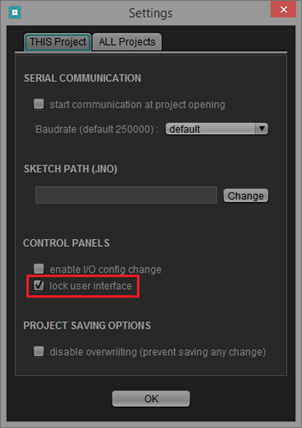

Preventing modifications

When you select the option “lock user interface” in the Settings Panel to prevent interface modifications, this option locks the Control Panels. It prevents further panels and labels change.
